♦ Practical digital clamp meter capable of accurately measuring various parameter values such as AC/DC current, AC/DC voltage, frequency, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.

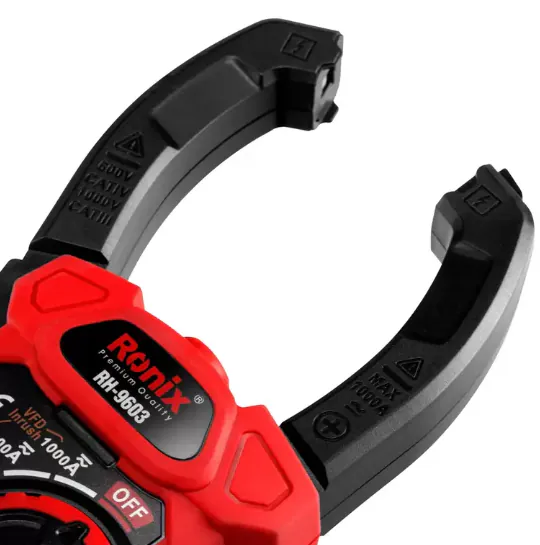

♦ Jaw opening measures AC/DC current in conductors up to 35 mm.
♦ Overload protection for all measurement ranges.
♦ Low input impedance helps prevent false readings caused by phantom voltage. Low-pass filter (LPF) ensures accurate measurement of variable frequency signals when testing motors and transformers.
♦ Flashlight function provides comfort and safe operation in dark spaces.
♦ Provides non-contact AC voltage detection.
♦ Achieves a high level of safety in a compact body and lightweight design.
♦ Durable body design with shock-resistant coating.
♦ Automatic shutdown after 15 minutes of inactivity helps save battery life.
♦ Designed and complies with IEC61010-1, CAT III 1000V, safe and reliable.
♦ Ideal for testing and maintaining electrical equipment.
Model: RH-9603
DC Voltage: 600mV/6V/60V/600V/1000V
AC Voltage: 600mV/6V/60V/600V/750V
DC Current: 60A/600A/1000A
AC Current: 60A/600A/1000A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF
Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Duty Cycle: 1%~99%
Temperature: (°C/°F) -20°C~1000°C. -4°F~1832°F
Count: 6000 counts
AC Frequency: 1KHz
LCD Size: 43.6*32.5 mm
Selection Indicator: Yes
Auto/Manual Range: Yes
Continuity: Yes
Diode: Yes
Data Hold: Yes
NCV: Yes
Backlight: Yes
Flashlight: Yes
DCA ZERO: Yes
Low Battery Indication: Yes
Auto Shutdown: Yes
True RMS: Yes
Shockproof Protection: Yes
Analog Bar Graph: Yes
VFD: Yes
INRUSH: Yes
MAX/MIN: Yes
REL: Yes
LowZ: Yes
V-LoZ: Yes
LPF: Yes
VA Screen: Yes
Body Material: ABS
Power: 3xAAA(1.5V) batteries
Weight: 320 g
Operating Temperature Range: 0-40°C
Dimensions: 240*85*47 mm
Jaw Opening: 40 mm
Jaw Size: ø35*60 mm
Safety Rating: EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V
Packaging: In color box

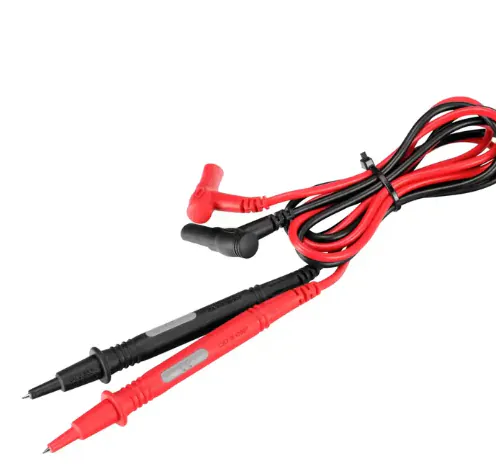

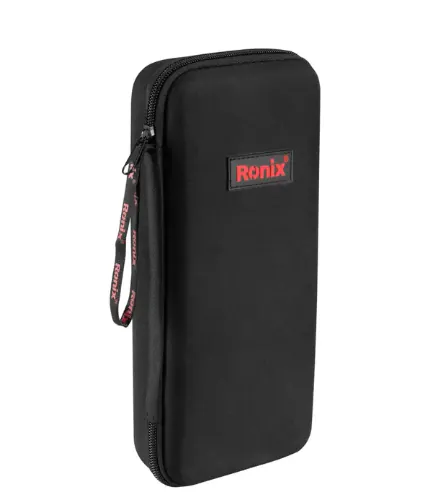

Includes: Probes, EVA tool bag, manual
