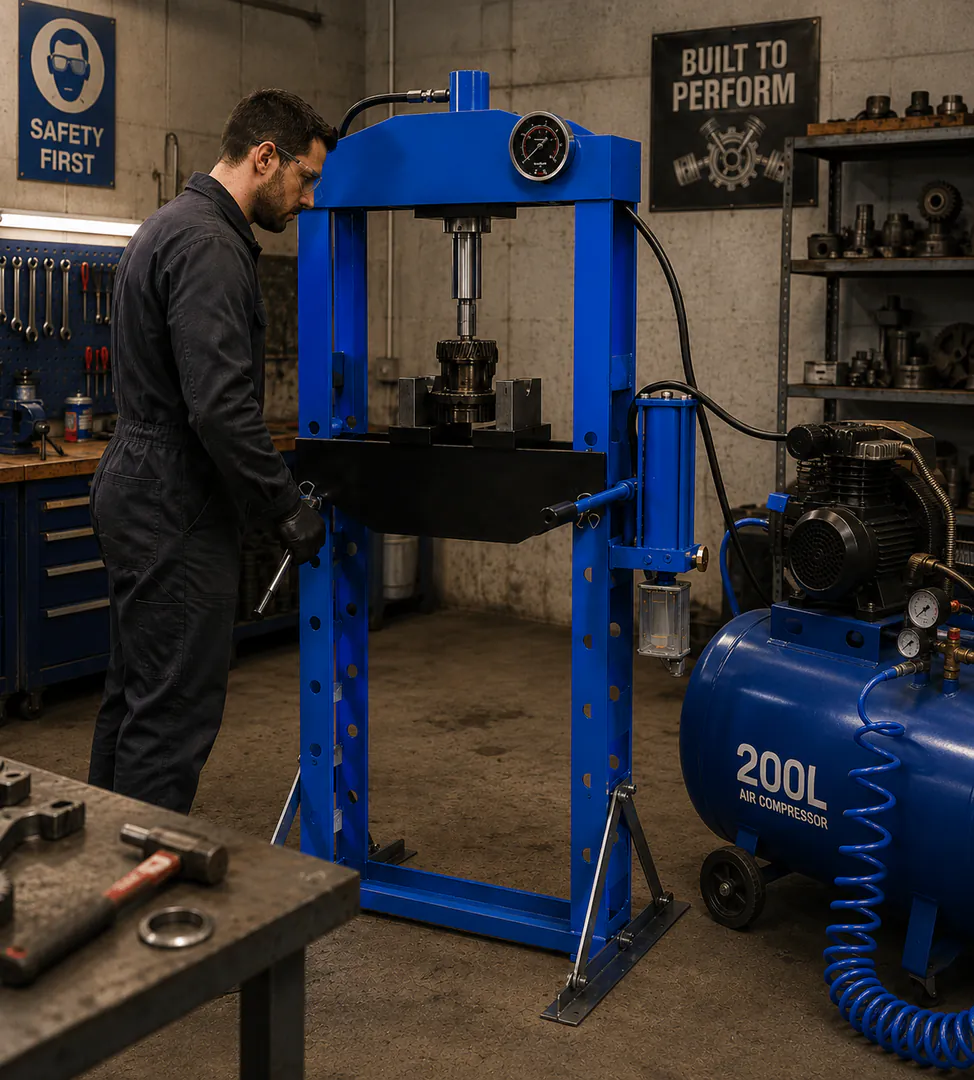

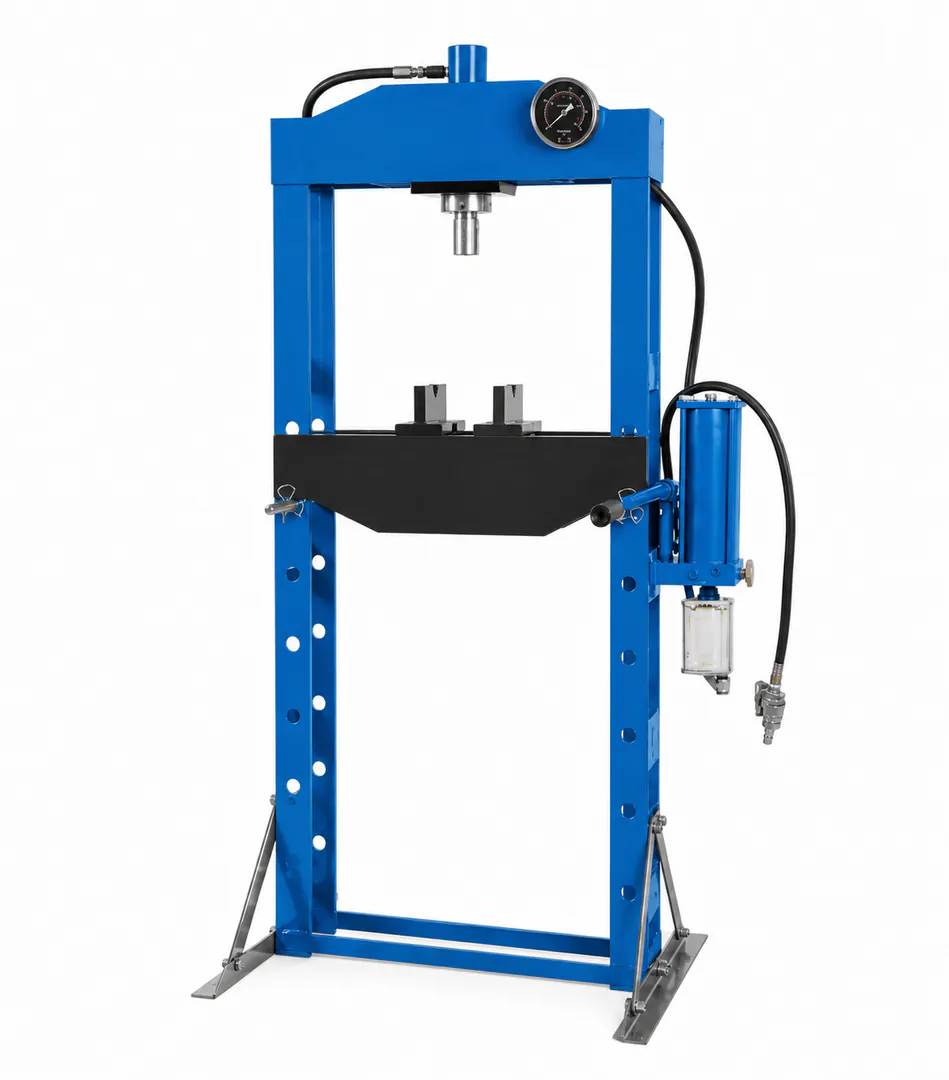

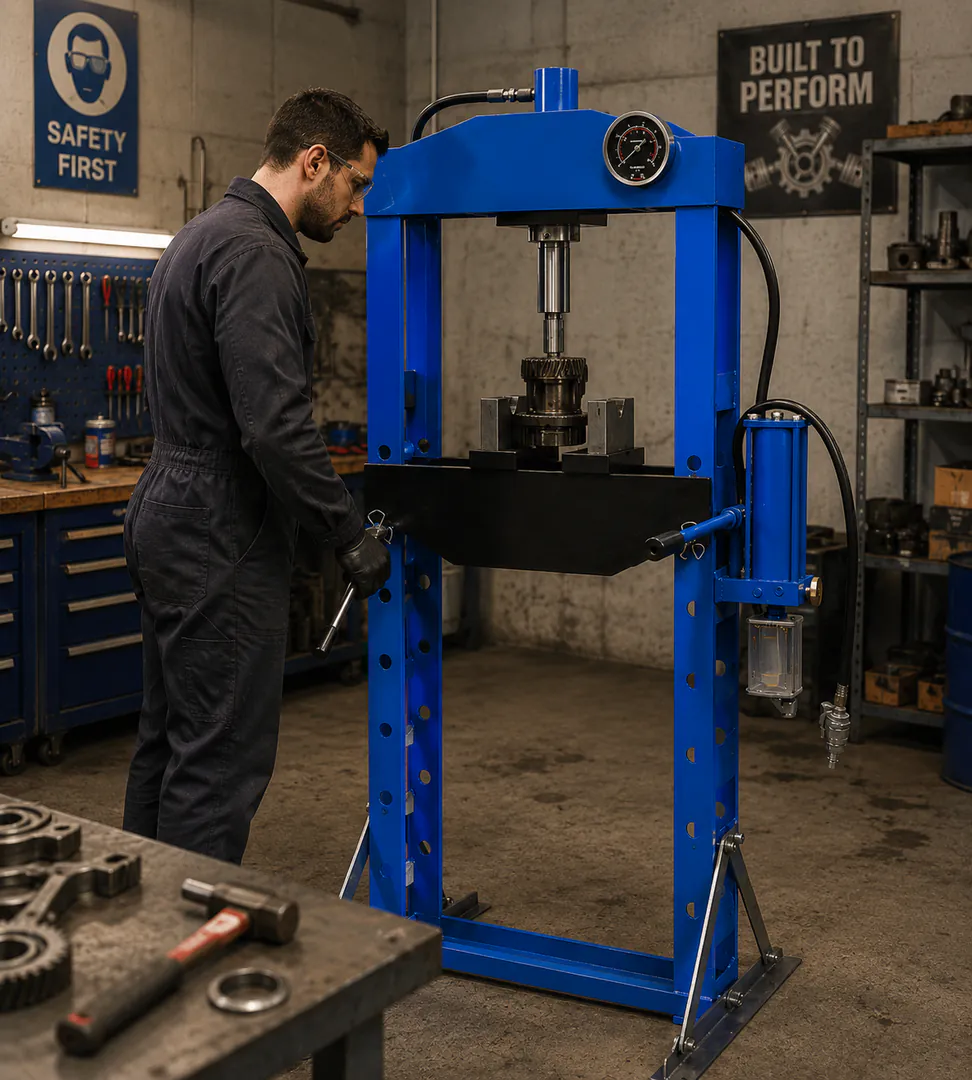

Pneumatic Hydraulic Press 20TON HSP20 with Compressor Support

RS4-V3.HSP20 is a 20-ton pneumatic hydraulic press that operates both with compressor assistance and using a manual hydraulic pump. The model is designed for auto service shops, mechanical workshops, and industrial facilities where high-force pressing or disassembly of parts is required.

The pneumatic system significantly simplifies operation, increases speed, and reduces physical strain. The 20-ton pressure force allows for easy installation and removal of bearings, bushings, shafts, pins, balls, axles, and other metal components.

The robust steel construction, adjustable work table, and high-quality hydraulic system ensure stable, safe, and long-term operation.

Features

•
Brand: RS4

•
Model: RS4-V3.HSP20

•
Type: Pneumatic hydraulic press

•
Operation: With compressor and manual hydraulic control

•
Pressure force: 20 tons

Technical Specifications

•
Type: Pneumatic hydraulic

•
Pressure force: 20 tons

•
Stroke: 150 mm

•
Height: 1560 mm

•
Working range: 1400 mm

•
Frame width: 610 mm

•
Work table adjustment: 120 mm

•
Weight: 150 kg

Advantages

•
High pressure force of 20 tons

•
Operates with compressor support

•
Manual hydraulic control is also possible

•
Robust steel construction

•
Adjustable work table

•
High precision and safe operation

•
Reduces operator's physical strain

•
For professional use

•
Long operational lifespan

Applications

•
In auto service centers

•
In mechanical workshops

•
In manufacturing and technical operations

•
Pressing and removing bearings

•
Installation/removal of bushings and shafts

•
Processing of pins and axles

•
Straightening and pressing of metal parts

Package Contents

•
Pneumatic hydraulic press RS4-V3.HSP20

•
Pneumatic hydraulic system

•
Manual hydraulic control mechanism

•
Adjustable work table

•
Set of support prisms (V-Blocks)

•
User manual

Note: To operate the device in pneumatic mode, connection to an air compressor is required. During operation, use appropriate personal protective equipment and do not exceed the maximum load of 20 tons.
